importer-labs/azure_devops/valet-migrate-custom-lab.md

Migrate an Azure DevOps pipeline to GitHub Actions with a custom transformer

In this lab, you will create a custom plugin that transforms some of the existing migration mapping and replaces it with your own mapping. Then use the migrate subcommand to migrate the pipeline. The migrate subcommand can be used to convert a pipeline to its GitHub Actions equivalent and then create a pull request with the contents.

• Prerequisites
• Identify the Azure DevOps pipeline ID to use
• Create a custom transformer
• Migrate with a custom transformer
• View the pull request

Prerequisites

1. Follow all steps here to set up your environment
2. Create or start a codespace in this repository (if not started)
3. Complete the Valet audit lab.
4. Complete the Valet migrate lab.

Identify the Azure DevOps pipeline ID to use

You will need the valet-mapper-example Azure DevOps pipeline ID to perform the migration

1. Go to the valet/ValetBootstrap/pipelines folder
2. Open the valet/ValetBootstrap/pipelines/valet-mapper-example.config.json file
3. Look for the web - href link
4. At the end of the link is the pipeline ID. Copy or note the ID.

Example

Create a custom transformer

To create a transformer, you need to create a Ruby file that looks as follows:

transform "azuredevopstaskname" do |item|
  # your ruby code here that produces output
end

We start by creating a new folder called plugin under the valet folder in your repository. In there create a file called DotNetCoreCLI.rb.

Next change the function name to match the Azure DevOps task name DotNetCoreCLI@2. The way you find this name is by clicking the view yaml button at a task in the pipeline:

This results in the following code:

transform "DotNetCoreCLI@2" do |item|
  # your ruby code here that produces output
end

The parameter item is a collection of items than contain the properties of the original task that was retrieved from Azure DevOps. In this case we can see in the yaml that the properties that are set are command and projects.

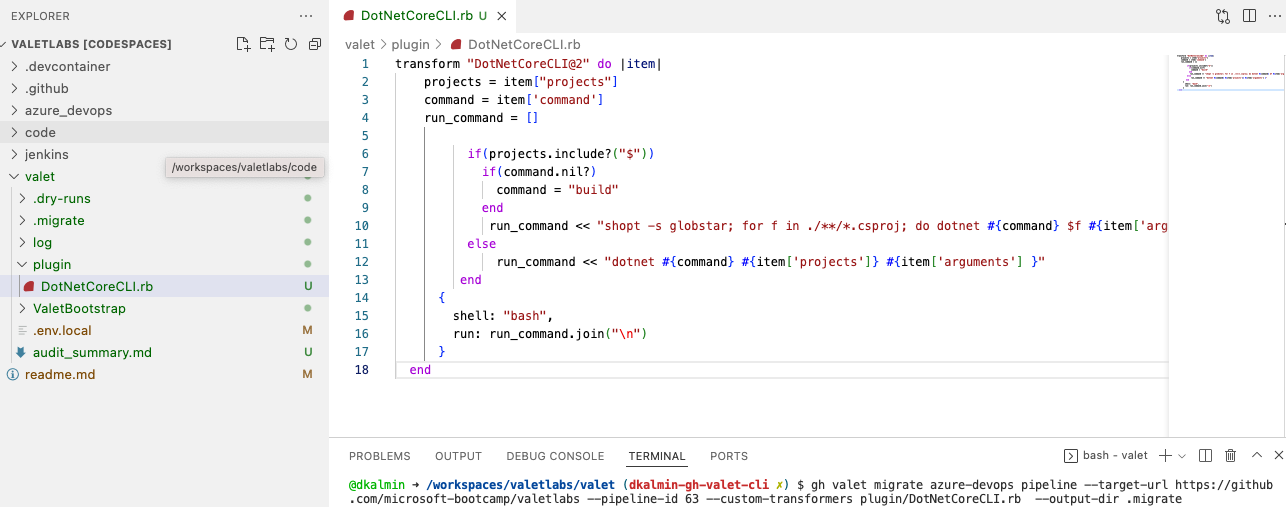

Add the following code to the ruby file:

transform "DotNetCoreCLI@2" do |item|
  projects = item["projects"]
  command = item["command"]
  run_command = []

  if projects.include?("$")
    command = "build" if command.nil?
    run_command << "shopt -s globstar; for f in ./**/*.csproj; do dotnet #{command} $f #{item['arguments']} ; done"
  else
    run_command << "dotnet #{command} #{item['projects']} #{item['arguments']}"
  end

  {
    shell: "bash",
    run:   run_command.join("\n")
  }
end

Migrate with a custom transformer

Run the gh valet migrate command from the valet directory with the transformer again and pass it the custom plugin. Look at the result and see if it results in a successful build.

gh valet migrate azure-devops pipeline --target-url https://github.com/GITHUB-ORG/GITHUB-REPO --pipeline-id PIPELINE-ID --custom-transformers plugin/DotNetCoreCLI.rb --output-dir migrate

Example

View the pull request

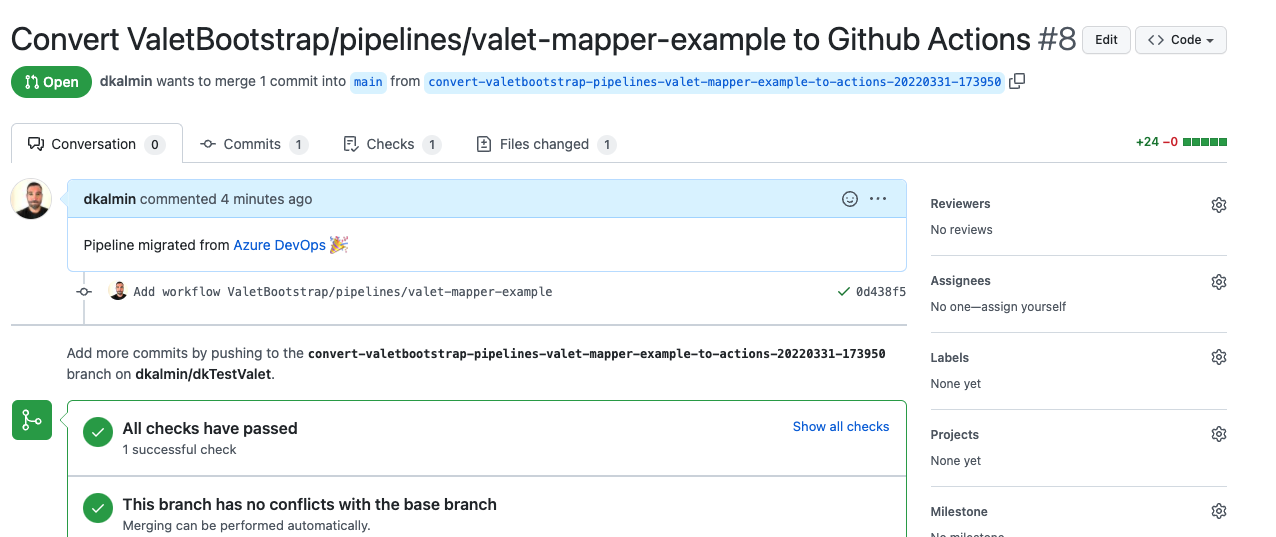

The migrate output will show you the pull request on GitHub. Note here that the checks on the pull request all passed!

Example
