Valet labs for Azure DevOps

This lab bootstraps a Valet environment using GitHub Codespaces and enables you to create an Azure DevOps project against which to run the Valet CI/CD migration tool.

Repo template

  1. Verify you are in your own Repository created from the landing page Valet Labs.

Prerequisites

  1. Azure DevOps organization. Please identify or create an Azure DevOps organization to use: Click to create an Azure DevOps Org
    • Note and store the Azure DevOp sorganization name for later.
    • Note and store the user name you use for your Azure DevOps Organization. It will be an email address.
  2. Azure DevOps Project. The default project name for this lab is ValetBootstrap There is an Action workflow that will create and populate the Azure DevOps project. No need to create it yourself. Note: The project has to be unique in the Azure DevOps organization. If you already have a project name ValetBootstrap please pick a different unique project name.
    • Note and store the Azure DevOps project name for later.
  3. Create an Azure DevOps personal access token with the following scopes:
    • To do so, navigate to Sign in to your organization https://dev.azure.com/{yourorganization}.
    • Click your Account management icon
    • Click user settings
    • Click Personal access tokens.
    • Select + New Token
    • Name your token, select the organization where you want to use the token, and then set your token to automatically expire after a set number of days.
    • Select the following scopes (Click Show more scopes if you don't see all of the below):
      • Agents Pool: Read
      • Build: Read & Execute
      • Code: Read & Write
      • Project and Team: Read, Write, & Manage
      • Release: Read
      • Service Connections: Read
      • Task Groups: Read
      • Variable Groups: Read
    • Click Create
    • Copy the PAT somewhere safe and temporary.
  4. Create a GitHub personal access token.
    • To do so, navigate to your GitHub Settings - click your profile photo and then click Settings.
    • Go to Developer Settings
    • Go to Personal Access Tokens -> Legacy tokens (if present)
    • Click Generate new token -> Legacy tokens (if present). If required, provide your password.
    • Select at least these scopes: read packages and workflow. Optionally, provide a text in the Note field and change the expiration.
    • Click Generate token
    • Copy the PAT somewhere safe and temporary.

Codespace secrets

Please add the following Codespace secrets.

  • VALET_GHCR_PASSWORD: Add VALET_GHCR_PASSWORD as the Name and the GitHub personal access token created above as the value.
  • AZURE_DEVOPS_ACCESS_TOKEN: Add AZURE_DEVOPS_ACCESS_TOKEN as the Name and the Azure DevOps personal access token created above as the value.
  • AZURE_DEVOPS_ORGANIZATION: Add AZURE_DEVOPS_ORGANIZATION as the Name and the Azure DevOps organization noted above as the value.
  • AZURE_DEVOPS_PROJECT: Add AZURE_DEVOPS_PROJECT as the Name and the Azure DevOps project noted above as the value.

Steps to create the Codespace secrets. Complete for secret noted above:

  • Navigate to the Settings tab in this repo
  • Find Secrets and click the down arrow
  • Click Codespaces
  • Click New Repository Secret to create a new secret
  • Name the secret as noted above
  • Paste in the value noted above
  • Click Add Secret

Action secrets

Please add the following Action secrets.

  • AZURE_DEVOPS_ACCESS_TOKEN: Add AZURE_DEVOPS_ACCESS_TOKEN as the Name and the Azure DevOps personal access token created above as the value.

Steps to create the Actions secret. Complete for secret noted above:

  • Navigate to the Settings tab in this repo
  • Find Secrets and click the down arrow
  • Click Actions
  • Click New Repository Secret to create a new secret
  • Name the secret as noted above
  • Paste in the value noted above
  • Click Add Secret

Azure DevOps project creation

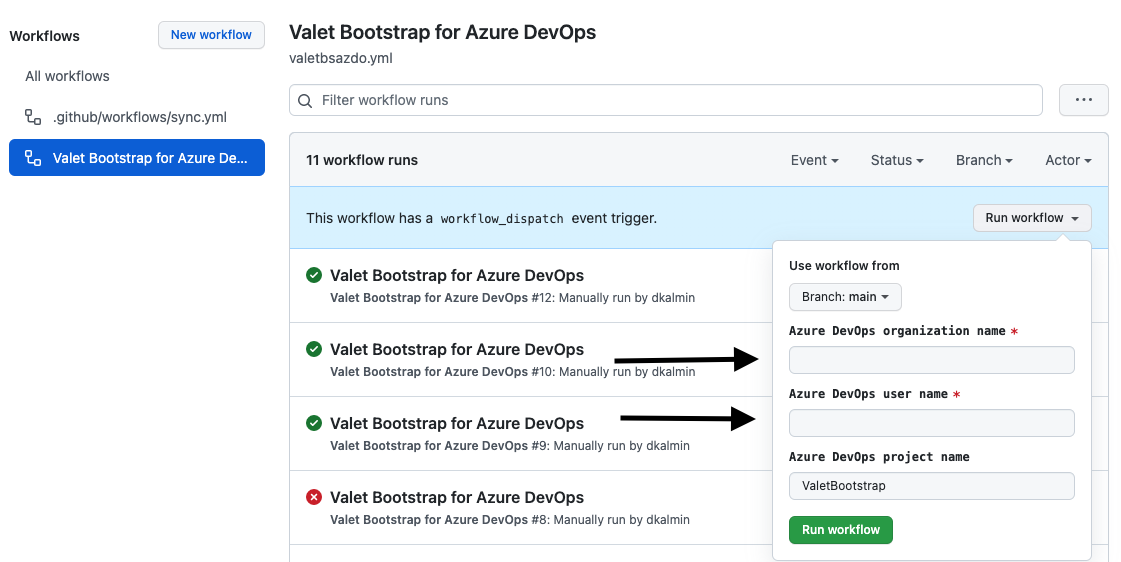

Run the Actions workflow:

  • CLick the Actions tab
  • Select the Valet Bootstrap for Azure DevOps action
  • Click Run Workflow
  • Input the Azure DevOps Organization name identified above
  • Input the Azure DevOps user name of the user that created the Azure DevOps PAT above. This will be an email address
  • Accept the default Azure DevOps project name or change it to one of your preference
    • NOTE: The default project name is ValetBootstrap. This must be unique in your Azure DevOps Organization. If not, please choose a unique name.
  • Click Run Workflow
  • Verify the workflow completed successfully. If the workflow did not run successfully you will see a detailed error message.

Example

runaction

Use Valet with a codespace

  1. Start the codespace
    • Click the Code with button down arrow above repository on the repository's landing page.
    • Click the Codespaces tab
    • Click Create codespaces on main to create the codespace. If you are in another branch then the main branch, the codespace will button will have the current branch specified.
    • Wait a couple minutes, then verify that the codespace starts up. Once it is fully booted up, the termininal should be present.
  2. Verify Valet CLI is installed and working. More information on the GitHub Valet CLI extension
    • Verify Valet CLI is installed and working

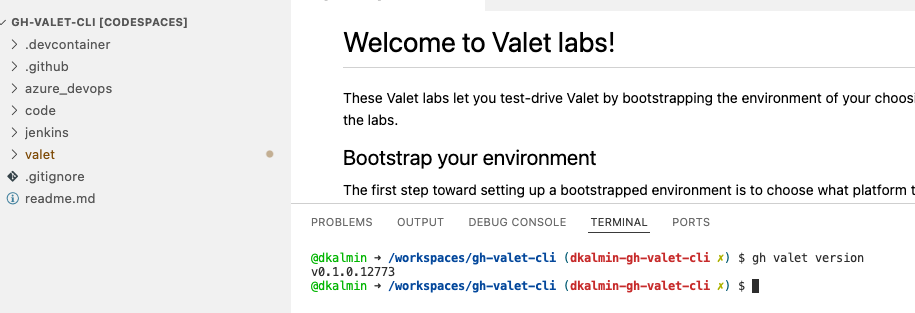

    • Run gh valet version in the Visual Studio Code terminal and verify the output looks like the below image. Note the valet version will be different than below as the latest version gets pulled down.
    • Start using Valet by following along with the Labs for Azure DevOps

Example

gh-valet-version

Labs for Azure DevOps

Perform the following labs to test-drive Valet

Troubleshoot GH Valet extension

Manually Install the GitHub CLI Valet extension. More information on the GitHub Valet CLI extension

  • Verify you are in the Visual Studio Code terminal
  • Run this command to install the GitHub Valet extension
  • gh extension install github/gh-valet
  • Verify the result of the install is: ✓ Installed extension github/gh-valet
  • If you get a similiar error to the following, click the link to authorize the token linktolcickauth
    • Restart Codespace after clicking the link
  • Verify Valet CLI is installed and working
