Audit GitLab using the Valet audit command

In this lab, you will use Valet to audit a GitLab namespace. The audit command will scan the GitLab namespace for all projects with pipelines that have run at least once, perform a dry-run on each of those pipelines, and finally perform an aggregation of all of the transformed workflows. This aggregate summary can be used as a planning tool and help understand how complete of a migration is possible with Valet. The goal of this lab is to performed an audit on the demo GitLab instance, and gain a good understanding of the components that make up an audit output.

Prerequisites
Perform an audit
Audit Files
Review audit summary
Review the Pipelines Section
Next Lab

Prerequisites

Follow all steps here to set up your environment.
Follow all steps here to configure Valet.

Perform an audit

Before running the command we need to collect some information:

What namespace or group do we want to audit? valet
Where do we want to store the result? tmp/audit

Steps

Navigate to the codespace terminal.
Run the following Valet audit command with the provided answers above:

gh valet audit gitlab --output-dir tmp/audit --namespace valet

Valet will print the locations of the audit results in the terminal when complete

Audit Files

The audit command outputs the following files:

File Type	Naming Convention	Description
GitLab pipeline source	valet/PROJECT_NAME.source.yml	The `.gitlab-ci.yml` file in the GitLab Project
GitLab project configuration	valet/PROJECT_NAME.config.json	Contains meta data retrieved for the GitLab Project
Valet log file	log/valet-TIMESTAMP.log	Log generated during an audit. Mainly used for troubleshooting
GitHub Actions workflows	valet/PROJECT_NAME.yml	GitHub Actions workflow that would be migrated to GitHub
Error file	valet/PROJECT_NAME.error.txt	Created when there is a error transforming the pipeline
Audit summary	audit_summary.md	Contains a summary of audit results and the main file of interest to understand the how complete of a migration can be done with Valet
GitHub Actions Reusable Workflows & Composite Actions	.github/workflows/NAME_HERE.yml	These files will only appear if Valet encountered a pipeline that would generated them. These files would be part of the migration to GitHub if they existed

Review audit summary

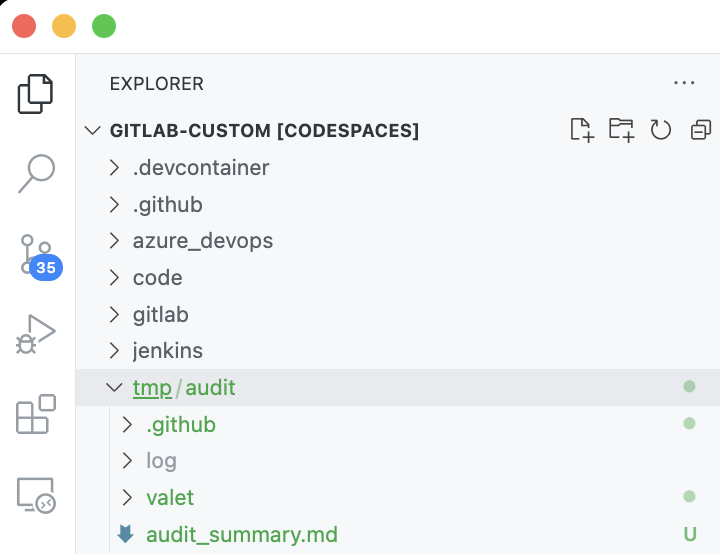

Under the audit folder find the audit_summary.md.
Right-click the audit_summary.md file and select Open Preview.
This file contains details about what can be migrated 100% automatically vs. what will need some manual intervention or aren't supported by GitHub Actions.
Review the file, it should match the audit_summary below:

Click to expand audit_summary.md

# Audit summary

Summary for [GitLab instance](http://localhost/valet)

- Valet version: **0.1.0.13413 (9623ae73787971925a4a05e83a947108291d2f15)**
- Performed at: **8/17/22 at 13:38**

## Pipelines

Total: **11**

- Successful: **10 (90%)**
- Partially successful: **0 (0%)**
- Unsupported: **1 (9%)**
- Failed: **0 (0%)**

### Job types

Supported: **10 (90%)**

- YAML: **10**

Unsupported: **1 (9%)**

- Auto DevOps: **1**

### Build steps

Total: **134**

Known: **133 (99%)**

- script: **62**
- checkout: **35**
- before_script: **19**
- artifacts: **5**
- after_script: **4**
- dependencies: **4**
- cache: **3**
- pages: **1**

Unsupported: **1 (0%)**

- artifacts.terraform: **1**

Actions: **135**

- run: **85**
- actions/checkout@v2: **35**
- actions/upload-artifact@v2: **5**
- actions/download-artifact@v2: **4**
- actions/cache@v2: **3**
- ./.github/workflows/a-.gitlab-ci.yml: **1**
- ./.github/workflows/b-.gitlab-ci.yml: **1**
- JamesIves/github-pages-deploy-action@4.1.5: **1**

### Triggers

Total: **30**

Known: **30 (100%)**

- manual: **10**
- merge_request: **10**
- push: **10**

Actions: **20**

- workflow_dispatch: **10**
- push: **10**

### Environment

Total: **0**

Actions: **2**

- PASSWORD: **1**
- ENVIRONMENT: **1**

### Other

Total: **10**

Known: **10 (100%)**

- auto_cancel_pending_pipelines: **10**

Actions: **53**

- image: **23**
- cancel_in_progress: **10**
- group: **10**
- GIT_SUBMODULE_STRATEGY: **3**
- docker:dind: **2**
- PLAN_JSON: **1**
- mysql:latest: **1**
- PLAN: **1**
- redis:latest: **1**
- postgres:latest: **1**

### Manual tasks

Total: **1**

Secrets: **1**

- `${{ secrets.PASSWORD }}`: **1**

### Successful

#### valet/included-files-example

- [valet/included-files-example.yml](valet/included-files-example.yml)
- [valet/included-files-example.config.json](valet/included-files-example.config.json)
- [valet/included-files-example.source.yml](valet/included-files-example.source.yml)

#### valet/terraform-example

- [valet/terraform-example.yml](valet/terraform-example.yml)
- [valet/terraform-example.config.json](valet/terraform-example.config.json)
- [valet/terraform-example.source.yml](valet/terraform-example.source.yml)

#### valet/child-parent-example

- [valet/child-parent-example.yml](valet/child-parent-example.yml)
- [.github/workflows/a-.gitlab-ci.yml](.github/workflows/a-.gitlab-ci.yml)
- [.github/workflows/b-.gitlab-ci.yml](.github/workflows/b-.gitlab-ci.yml)
- [valet/child-parent-example.config.json](valet/child-parent-example.config.json)
- [valet/child-parent-example.source.yml](valet/child-parent-example.source.yml)

#### valet/include-file-example

- [valet/include-file-example.yml](valet/include-file-example.yml)
- [valet/include-file-example.config.json](valet/include-file-example.config.json)
- [valet/include-file-example.source.yml](valet/include-file-example.source.yml)

#### valet/basic-pipeline-example

- [valet/basic-pipeline-example.yml](valet/basic-pipeline-example.yml)
- [valet/basic-pipeline-example.config.json](valet/basic-pipeline-example.config.json)
- [valet/basic-pipeline-example.source.yml](valet/basic-pipeline-example.source.yml)

#### valet/gatsby-example

- [valet/gatsby-example.yml](valet/gatsby-example.yml)
- [valet/gatsby-example.config.json](valet/gatsby-example.config.json)
- [valet/gatsby-example.source.yml](valet/gatsby-example.source.yml)

#### valet/android-example

- [valet/android-example.yml](valet/android-example.yml)
- [valet/android-example.config.json](valet/android-example.config.json)
- [valet/android-example.source.yml](valet/android-example.source.yml)

#### valet/dotnet-example

- [valet/dotnet-example.yml](valet/dotnet-example.yml)
- [valet/dotnet-example.config.json](valet/dotnet-example.config.json)
- [valet/dotnet-example.source.yml](valet/dotnet-example.source.yml)

#### valet/node-example

- [valet/node-example.yml](valet/node-example.yml)
- [valet/node-example.config.json](valet/node-example.config.json)
- [valet/node-example.source.yml](valet/node-example.source.yml)

#### valet/rails-example

- [valet/rails-example.yml](valet/rails-example.yml)
- [valet/rails-example.config.json](valet/rails-example.config.json)
- [valet/rails-example.source.yml](valet/rails-example.source.yml)

### Failed

#### valet/autodevops-example

- [valet/autodevops-example.error.txt](valet/autodevops-example.error.txt)
- [valet/autodevops-example.config.json](valet/autodevops-example.config.json)

Review the Pipelines Section

The audit summary starts by giving a summary of the types of pipelines that were extracted.

## Pipelines

Total: **11**

- Successful: **10 (90%)**
- Partially successful: **0 (0%)**
- Unsupported: **1 (9%)**
- Failed: **0 (0%)**

It shows that there were a total of 11 pipelines extracted.
90% were successful. This means that Valet knew how to map all the constructs of the pipeline to a GitHub Actions equivalent.
0% were partially successful. If there were pipelines that fell into this category it would means that Valet knew how to map less than 100% of the constructs to a Github Actions equivalent.
9% were unsupported. This means that the pipeline is fundamentally unsupported by Valet. In this example it is because one of the projects has Auto DevOps enabled.
0% of these fail altogether. If there were pipelines that fall into this category, that would mean that those pipelines were misconfigured or there was an issue with Valet.

Under the Job types section, we can see that the audit command was able to transform 10 YAML pipelines and encountered a unsupported Auto Devops pipeline

### Job types

Supported: **10 (90%)**

- YAML: **10**

Unsupported: **1 (9%)**

- Auto DevOps: **1**

Under the Build steps section we can see a breakdown of the build steps that are used in the pipelines and what was Known and Unsupported by Valet. In a later lab we will address the unsupported step artifacts.terraform.

### Build steps

Total: **134**

Known: **133 (99%)**

- script: **62**
- checkout: **35**
- before_script: **19**
- artifacts: **5**
- after_script: **4**
- dependencies: **4**
- cache: **3**
- pages: **1**

Unsupported: **1 (0%)**

- artifacts.terraform: **1**

Under the Actions section in Build Steps we have the list of the Actions that were used in order to implement the transformation of all of these build steps.

Actions: **135**

- run: **85**
- actions/checkout@v2: **35**
- actions/upload-artifact@v2: **5**
- actions/download-artifact@v2: **4**
- actions/cache@v2: **3**
- ./.github/workflows/a-.gitlab-ci.yml: **1**
- ./.github/workflows/b-.gitlab-ci.yml: **1**
- JamesIves/github-pages-deploy-action@4.1.5: **1**

Valet is a planning tool that can help in facilitating the migration into GitHub Actions and this list of Actions is a great place to understand what dependencies you would be taking on third-party Actions after this migration. For example, if you are doing things like setting up the allow list of third-party Actions in a GitHub Enterprise server instance this list of Actions is a fantastic place to begin security reviews and audits of what third-party actions to depend on.

Valet breaks down the pipeline components further into Triggers, Environment, Other, and Manual tasks.

Triggers are a list of pipeline trigger found
Environment are a list of project variables found
Manual tasks are a list of user tasks that needs to be done in order for a pipeline to be functional when migrating to GitHub, such as adding secrets for a masked project variable, like we see here for the variable PASSWORD. In a later lab we will see how these manual tasks appear on a pull request when we do a migration.
```
Secrets: **1**

- `${{ secrets.PASSWORD }}`: **1**
```
Other is a catch all for all other components

The remaining sections Successful and Failed are groupings of the generated audit files. For example, the project child-parent-example was successfully transformed and can be found under the Successful section, with all of the associated file links listed under the project name.

#### valet/child-parent-example

- [valet/child-parent-example.yml](valet/child-parent-example.yml)
- [.github/workflows/a-.gitlab-ci.yml](.github/workflows/a-.gitlab-ci.yml)
- [.github/workflows/b-.gitlab-ci.yml](.github/workflows/b-.gitlab-ci.yml)
- [valet/child-parent-example.config.json](valet/child-parent-example.config.json)
- [valet/child-parent-example.source.yml](valet/child-parent-example.source.yml)

Note: this has files under the .github directory. This tells us that this pipeline generated reusable workflows from the include statements used in the source pipeline.

Next Lab

Dry run the migration of a GitLab pipeline to GitHub Actions
