importer-labs/gitlab/3-dry-run.md

Perform a dry-run of a GitLab pipeline

In this lab you will use the dry-run command to convert a GitLab pipeline to its equivalent GitHub Actions workflow.

Prerequisites

1. Followed the steps here to set up your Codespace environment and start a GitLab server.
2. Completed the configure lab.
3. Completed the audit lab.

Perform a dry run

We will be performing a dry-run against a pipeline in your preconfigured GitLab server. We will need to answer the following questions before running this command:

1. What is the project we want to convert?

   • basic-pipeline-example

2. What is the namespace for that project?

   • Valet

3. Where do we want to store the result?

   • ./tmp/dry-run-lab. This can be any path within the working directory that Valet commands are executed from.

Steps

1. Navigate to the codespace terminal

2. Run the following command from the root directory:

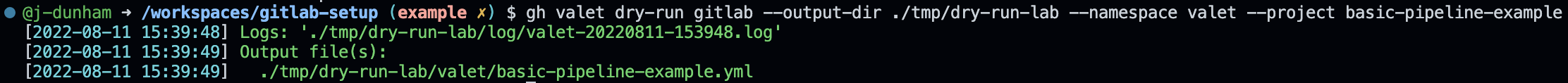

   gh valet dry-run gitlab --output-dir ./tmp/dry-run-lab --namespace valet --project basic-pipeline-example


3. The command will list all the files written to disk when the command succeeds.



4. View the converted workflow:

   • Find ./tmp/dry-run/valet in the file explorer pane in codespaces.
   • Click basic-pipeline-example.yml to open.

Inspect the output files

The files generated from the dry-run command represent the equivalent Actions workflow for the given GitLab pipeline. The GitLab pipeline and converted workflow can be seen below:

GitLab pipeline 👇

stages:
  - build
  - test
  - deploy

image: alpine

build_a:
  stage: build
  script:
    - echo "This job builds something."
    - sleep 100

build_b:
  stage: build
  script:
    - echo "This job builds something else."
    - sleep 70

test_a:
  stage: test
  script:
    - echo "This job tests something. It will only run when all jobs in the"
    - echo "build stage are complete."

test_b:
  stage: test
  script:
    - echo "This job tests something else. It will only run when all jobs in the"
    - echo "build stage are complete too. It will start at about the same time as test_a."
    - sleep 300

deploy_a:
  stage: deploy
  script:
    - echo "This job deploys something. It will only run when all jobs in the"
    - echo "test stage complete."
    - sleep 600

deploy_b:
  stage: deploy
  script:
    - echo "This job deploys something else. It will only run when all jobs in the"
    - echo "test stage complete. It will start at about the same time as deploy_a."
    - sleep 400

Converted workflow 👇

name: valet/basic-pipeline-example
on:
  push:
  workflow_dispatch:
concurrency:
  group: "${{ github.ref }}"
  cancel-in-progress: true
jobs:
  build_a:
    runs-on: ubuntu-latest
    container:
      image: alpine
    timeout-minutes: 60
    steps:
    - uses: actions/checkout@v2
      with:
        fetch-depth: 20
        lfs: true
    - run: echo "This job builds something."
    - run: sleep 100
  build_b:
    runs-on: ubuntu-latest
    container:
      image: alpine
    timeout-minutes: 60
    steps:
    - uses: actions/checkout@v2
      with:
        fetch-depth: 20
        lfs: true
    - run: echo "This job builds something else."
    - run: sleep 70
  test_a:
    needs:
    - build_a
    - build_b
    runs-on: ubuntu-latest
    container:
      image: alpine
    timeout-minutes: 60
    steps:
    - uses: actions/checkout@v2
      with:
        fetch-depth: 20
        lfs: true
    - run: echo "This job tests something. It will only run when all jobs in the"
    - run: echo "build stage are complete."
  test_b:
    needs:
    - build_a
    - build_b
    runs-on: ubuntu-latest
    container:
      image: alpine
    timeout-minutes: 60
    steps:
    - uses: actions/checkout@v2
      with:
        fetch-depth: 20
        lfs: true
    - run: echo "This job tests something else. It will only run when all jobs in the"
    - run: echo "build stage are complete too. It will start at about the same time as test_a."
    - run: sleep 300
  deploy_a:
    needs:
    - test_a
    - test_b
    runs-on: ubuntu-latest
    container:
      image: alpine
    timeout-minutes: 60
    steps:
    - uses: actions/checkout@v2
      with:
        fetch-depth: 20
        lfs: true
    - run: echo "This job deploys something. It will only run when all jobs in the"
    - run: echo "test stage complete."
    - run: sleep 600
  deploy_b:
    needs:
    - test_a
    - test_b
    runs-on: ubuntu-latest
    container:
      image: alpine
    timeout-minutes: 60
    steps:
    - uses: actions/checkout@v2
      with:
        fetch-depth: 20
        lfs: true
    - run: echo "This job deploys something else. It will only run when all jobs in the"
    - run: echo "test stage complete. It will start at about the same time as deploy_a."
    - run: sleep 400

Despite these 2 pipelines using different syntax they will function equivantly.

Perform a dry-run of a pipeline using include'd files

The previous example demonstrated a basic pipeline that mapped exactly to concepts in GitHub Actions. In this section, we will perform a dry-run of the included-files-example pipeline that uses the include statement in GitLab:

include:
  - local: /config/build.gitlab-ci.yml
  - local: /config/test.gitlab-ci.yml

The output of the dry-run command can be seen below:

name: valet/included-files-example
on:
  push:
  pull_request:
  workflow_dispatch:
concurrency:
  group: "${{ github.ref }}"
  cancel-in-progress: true
jobs:
  build:
    runs-on: ubuntu-latest
    timeout-minutes: 60
    steps:
    - uses: actions/checkout@v2
      with:
        fetch-depth: 50
        lfs: true
    - run: echo "[BEFORE_SCRIPT] this is from test.gitlab-ci.yml"
    - run: echo "this is from a local file"
  test:
    needs: build
    runs-on: ubuntu-latest
    timeout-minutes: 60
    steps:
    - uses: actions/checkout@v2
      with:
        fetch-depth: 50
        lfs: true
    - run: echo "[BEFORE_SCRIPT] this is from test.gitlab-ci.yml"
    - run: echo "this is from a local file"

It's important to note that Valet converted this into a single workflow without templates. This is because of fundamental differences in how GitLab templates and GitHub Actions templates (i.e. Reusable Workflows and Composite Actions) function in regards to job ordering. Unfortunately, elements of reusability will be sacrificed in order for the converted pipelines to function the same. It is likely that the output of Valet could be refactored to use reusable workflow at a later date.

As an added challenge, try constructing and running the dry-run command yourself. Hint, you should just have to change the project name.

Next lab

Use custom transformers to customize Valet's behavior
