diff --git a/.devcontainer/devcontainer.json b/.devcontainer/devcontainer.json
index 9bdc2e9..7aca41f 100644
--- a/.devcontainer/devcontainer.json
+++ b/.devcontainer/devcontainer.json
@@ -1,10 +1,12 @@
{
- "name": "Codespace to bootstrap valet in a Codespace",
- //Use base codespace image then pull Valet on postCreateCommand,
- "image": "mcr.microsoft.com/vscode/devcontainers/universal:linux",
- "remoteUser": "codespace",
+ "name": "Codespace to bootstrap valet in a Codespace",
+ //Use base codespace image then pull Valet on postCreateCommand,
+ "image": "mcr.microsoft.com/vscode/devcontainers/universal:linux",
+ "remoteUser": "codespace",
"overrideCommand": false,
- "mounts": ["source=codespaces-linux-var-lib-docker,target=/var/lib/docker,type=volume"],
+ "mounts": [
+ "source=codespaces-linux-var-lib-docker,target=/var/lib/docker,type=volume"
+ ],
"runArgs": [
"--cap-add=SYS_PTRACE",
"--security-opt",
@@ -12,11 +14,10 @@
"--privileged",
"--init"
],
-
// Add the IDs of extensions you want installed when the container is created.
"extensions": [
"ms-azuretools.vscode-docker",
],
"onCreateCommand": 'echo "export GITHUB_ACCESS_TOKEN=$VALET_GHCR_PASSWORD" >> ~/.bashrc',
- "postCreateCommand": "sudo bash .devcontainer/setupcodespace.sh ${VALET_GHCR_PASSWORD} ${AZURE_DEVOPS_PROJECT} ${AZURE_DEVOPS_ORGANIZATION} ${AZURE_DEVOPS_ACCESS_TOKEN} ${GITHUB_USER} ${JENKINS_USERNAME} ${JENKINS_PASSWORD}'https://github.com/' && gh extension install github/gh-valet || echo 'Could not auto-build. Skipping.' "
-}
+ "postCreateCommand": "sudo bash .devcontainer/setupcodespace.sh ${VALET_GHCR_PASSWORD} ${AZURE_DEVOPS_PROJECT} ${AZURE_DEVOPS_ORGANIZATION} ${AZURE_DEVOPS_ACCESS_TOKEN} ${GITHUB_USER} 'https://github.com/' && gh extension install github/gh-valet || echo 'Could not auto-build. Skipping.' "
+}
\ No newline at end of file
diff --git a/.devcontainer/setupcodespace.sh b/.devcontainer/setupcodespace.sh
index 69ca866..c98469a 100644
--- a/.devcontainer/setupcodespace.sh
+++ b/.devcontainer/setupcodespace.sh
@@ -25,16 +25,4 @@ then
echo "Error: Set envars not set, valid values not passed in. You will have to manually use the valet/.env.local folder"
fi
-
-# if Jenkins codespace secrets are set, spin up Jenkins instance
-
-if [ -z "$7" -o -z "$8"]
-then
-else
- echo "Jenkins secrets are set, starting Jenkins service"
- ../jenkins/jenkins_setup/setupjenkins.sh $7 $8
-fi
-
-
-
echo "Finished setupcodespace.sh"
diff --git a/.gitignore b/.gitignore
index 45805d9..f4adbb6 100644
--- a/.gitignore
+++ b/.gitignore
@@ -3,8 +3,6 @@
##
## Get latest from https://github.com/github/gitignore/blob/master/VisualStudio.gitignore
-.tmp
-
# User-specific files
*.rsuser
*.suo
diff --git a/azure_devops/pipelines/yml/valet-pipeline3.yml b/azure_devops/pipelines/yml/valet-pipeline3.yml
deleted file mode 100644
index d09df8c..0000000
--- a/azure_devops/pipelines/yml/valet-pipeline3.yml
+++ /dev/null
@@ -1,22 +0,0 @@
-trigger:
-- build
-
-variables:
- - name: OLD
- value: "SECRET"
-
-pool: MyPool
-
-steps:
-- script: echo Hello, world!
- displayName: 'Run a one-line script'
-
-- task: GoTool@0
- inputs:
- version: '1.10'
-- task: AzureFunctionApp@1
- inputs:
- azureSubscription: 'ACE CAT: valet-testing'
- appType: 'functionAppLinux'
- appName: 'demo'
- package: '$(System.DefaultWorkingDirectory)/**/*.zip'
diff --git a/jenkins/bootstrap/setup.sh b/jenkins/bootstrap/setup.sh
new file mode 100755
index 0000000..e7fb5e0
--- /dev/null
+++ b/jenkins/bootstrap/setup.sh
@@ -0,0 +1,33 @@
+#!/bin/bash
+
+container_name="valet"
+username="admin"
+password="password"
+
+echo "Building Jenkins instance!"
+
+if [ "$(docker ps -a | grep jenkins:$container_name)" ]; then
+ echo -e "Jenkins is running"
+ docker container start jenkins
+else
+ echo -e "\nStarting a new Jenkins container"
+ # Build jenkins image from docker compose file
+ docker build -t jenkins:$container_name .
+
+ # Build container
+ docker run -d --name jenkins -p 8080:8080 --env JENKINS_ADMIN_ID=$username --env JENKINS_ADMIN_PASSWORD=$password jenkins:$container_name
+fi
+
+# allow valet to talk to Jenkins by removing network isolation between containers
+export DOCKER_ARGS="--network=host"
+grep -q "export DOCKER_ARGS=" ~/.bashrc || echo 'export DOCKER_ARGS="--network=host"' >> ~/.bashrc
+
+echo -e "\nWaiting for Jenkins to start..."
+while ! curl -s http://localhost:8080/ > /dev/null; do
+ echo -e "."
+ sleep 5
+done
+
+echo -e '\nJenkins is up and running!'
+echo -e "\nUsername: admin"
+echo -e "\bPassword: password"
\ No newline at end of file
diff --git a/jenkins/readme.md b/jenkins/readme.md
index 8349c4a..eb9e71c 100644
--- a/jenkins/readme.md
+++ b/jenkins/readme.md
@@ -1 +1,71 @@
-# Coming Soon!
+# Valet labs for Jenkins
+
+This lab bootstraps a Valet environment using GitHub Codespaces and enables you to spin up a Jenkins instance against which to run the Valet CI/CD migration tool.
+
+- [Use this Repo as a template](#repo-template)
+- [Prerequisites](#prerequisites)
+- [Use Valet with a codespace](#use-valet-with-a-codespace)
+- [Bootstrap Jenkins](#bootstrap-jenkins)
+
+## Repo template
+
+1. Verify you are in your own Repository created from the landing page [Valet Labs](https://github.com/valet-customers/labs).
+
+
+## Use Valet with a codespace
+
+1. Start the codespace
+ - Click the `Code` with button down arrow above repository on the repository's landing page.
+ - Click the `Codespaces` tab
+ - Click `Create codespaces on main` to create the codespace. If you are in another branch then the `main` branch, the codespace will button will have the current branch specified.
+ - Wait a couple minutes, then verify that the codespace starts up. Once it is fully booted up, the termininal should be present.
+2. Verify Valet CLI is installed and working. More information on the [GitHub Valet CLI extension](https://github.com/github/gh-valet)
+ - Verify Valet CLI is installed and working

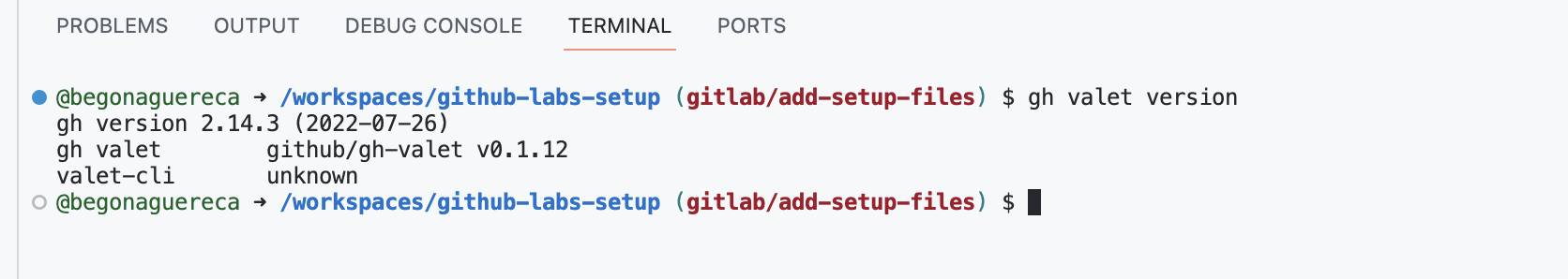

+ - Run `gh valet version` in the Visual Studio Code terminal and verify the output looks like the below image. Note the valet version will be different than below as the latest version gets pulled down.
+ - If `gh valet version` did not produce a similar image with a version please follow these instructions [Troubleshoot GH Valet extension](#troubleshoot-gh-valet-extension)
+
+
+
+## Bootstrap Jenkins
+
+ 1. Run the Jenkins setup script. This script will setup Jenkins and ensure it is ready to use. In general, this script should be run first if you are starting a new codespace or restarting an existing one.
+
+- Navigate to the terminal within your Codespace.
+- Run `source jenkins/bootstrap/setup.sh` to kick off the creation of your Jenkins instance.
+- After a couple seconds, a pop-up box should appear with a link to the forwarded URL for your Jenkins instance.
+- You can also access the forwarded URL by going to the `Ports` tab in your terminal. Right click on the URL listed under the `Local Address` and clicking the `Open in Browser` tab.
+- Once you have navigated to the url, the following default credentials have been assigned:
+
+ - username: `admin`
+ - password: `password`
+
+2. Click the `Sign in` button and you should now see your new Jenkins instance with a few pre-populataed pipelines.
+
+## Labs for Jenkins
+
+Perform the following labs to test-drive Valet
+
+- TBD
+
+## Troubleshoot GH Valet extension
+
+Manually Install the GitHub CLI Valet extension. More information on the [GitHub Valet CLI extension](https://github.com/github/gh-valet)
+
+- Verify you are in the codespace terminal
+- Run this command to install the GitHub Valet extension
+- `gh extension install github/gh-valet`
+- Verify the result of the install is: `✓ Installed extension github/gh-valet`
+- If you get a similiar error to the following, click the link to authorize the token
+ - Restart Codespace after clicking the link
+- Verify Valet CLI is installed and working by running `gh valet version`
+
+
+
+## Troubleshooting Jenkins
+
+1. Navigate to the Docker tab on your left hand side.
+2. Under the `Containers` tab you should see a Docker container `jenkins:valet` listed with a green play button ▶
+ - If you see the `jenkins:valet` container, but it has a red stopped symbol next to it ▢, right click on the container and click on `start`, the container should begin running again.
+ - If the container does not start even after trying to manually start it, right click on the `jenkins:valet` container and click the `remove` button. Next continue by following all the #bootstrap-jenkins instructions again.
+
+
diff --git a/jenkins/valet-audit-lab.md b/jenkins/valet-audit-lab.md
new file mode 100644
index 0000000..cad80e1
--- /dev/null
+++ b/jenkins/valet-audit-lab.md
@@ -0,0 +1,124 @@
+# Audit Jenkins pipelines using the Valet audit command
+
+In this lab, you will use Valet to `audit` a Jenkins organization. The `audit` command can be used to scan a CI server and output a summary of the current pipelines.
+
+What happens behind the scenes is that Valet will perform a `dry-run` on each of the Jenkins pipelines. Once that is complete, Valet will perform an aggregation of all of the transformed workflows. This aggregate summary can be used as a planning tool and help understand how complete of a migration is possible with Valet.
+
+By the end of this lab you will have performed an audit on the demo Jenkins instance, and have a good understanding of the components that make up an audit.
+
+- [Prerequisites](#prerequisites)
+- [Perform an audit](#perform-an-audit)
+- [View audit output](#view-audit-output)
+- [Review the pipelines](#review-the-pipelines)
+- [Next Lab](#next-lab)
+
+## Prerequisites
+
+1. Follow all steps [here](../jenkins#readme) to set up your environment.
+2. Follow all steps [here](../jenkins#valet-configure-lab) to configure Valet.
+
+## Perform an audit
+
+We will be performing an audit against a preconfigured Jenkins instance. Before running the command we need to collect some information:
+
+ 1. Do we want to audit the entire Jenkins instance, or just a single folder? __In this example we will be auditing the entire Jenkins instance, but in the future if you wanted to configure a specific folder to be audited add the `-f ` flag to the audit command__
+ 2. Where do we want to store the result? __./tmp/audit. This can be any valid path on the system. In the case of codespaces it is generally best to use `./tmp/SOME_DIRECTORY_HERE` so the files show in explorer__
+
+### Steps
+
+1. Navigate to the codespace terminal.
+2. Now, from root directory, run the following Valet audit command:
+
+```
+gh valet audit jenkins --output-dir tmp/audit
+```
+
+3. Valet will log the output files in green when the audit is successful
+
+### Example
+
+
+
+## View audit output
+
+The audit summary, logs, config files, jenkinsfiles, and transformed Actions Workflows should all be located within the `tmp/audit` folder.
+
+1. Under the `audit` folder find the `audit_summary.md`
+2. Right-click the `audit_summary.md` file and select `Open Preview`
+3. The file contains details about your current pipelines and what can be migrated 100% automatically vs. what will need some manual intervention or aren't supported by GitHub Actions.
+4. Review the file, it should look like the image below:
+
+### Example
+
+
+
+## Review the pipelines
+
+### Pipelines
+
+The audit summary starts by giving a summary of the types of pipelines that were extracted from Jenkins.
+
+- It shows that there are a total of 7 pipelines extracted.
+
+- 42% pipelines were successful. This means that Valet knew how to map all the constructs of the Jenkins pipeline to a GitHub Actions equivalent. All of the build pluggins and triggers that are referenced were all successfully converted into a GitHub Actions equivalent.
+
+- 42% pipelines were partially successful. This means that Valet knew how to map all the constructs of the Jenkins pipeline but there may be a plugin that was referenced that Valet wasn't able to automatically map to a Github Actions equivalent.
+
+- 1% of these pipelines were unsupported. This means that the pipeline type is fundamentally unsupported by Valet. This is most likely a Jenkins scripted pipeline.
+
+- 0% of these fail altogether. If there were any pipelines that would fall under this category, that would mean that those pipelines were misconfigured or there was an issue with Valet.
+
+Under the `Job types` section, we can see that the `audit` command is able to support the conversion of project, freestyle (flow-defintion), and multibranch pipelines from Jenkins and convert them to a GitHub Actions workflow. Valet does not support converting [scripted pipelines](https://www.jenkins.io/doc/book/pipeline/syntax/#scripted-pipeline) (e.g. pure Groovy).
+
+#### Example
+
+
+
+### Build steps
+
+Under the `Build steps` section we can see a breakdown of the build steps that were used in these pipelines.
+
+- Supported: 12/16 discrete build steps are considered known by Valet. When Valet encounters a build step of this type, it knows exactly how to map that into a GitHub Actions equivalent.
+- Unknown: 3/16 discrete build steps are considered unknown by Valet. When Valet enounters a build step of this type, it does not yet know to map this automatically to a GitHub Action equivalent.
+- Unsupported: 1/16 discrete build steps are considered unsupported by Valet. This could mean one of three things:
+ 1. The way that plugin was configured for a given job is unsupported.
+ 2. The plugin itself is fundamentally not supported in GitHub Actions.
+ 3. It's supported by default in GitHub Actions.
+
+Under the `Actions` section we have the list of the Actions that were used in order to implement the transformation of all of these build steps. Valet is a planning tool that can help in facilitating the migration into GitHub Actions and this list of Actions is a great place to understand what dependencies you would be taking on third-party Actions after this migration.
+
+For example, if you are doing things like setting up the allow list of third-party Actions in a GitHub Enterprise server instance this list of Actions is a fantastic place to begin security reviews and audits of what third-party actions to depend on.
+
+#### Example
+
+
+
+### Trigger, Environment, Other
+
+Similar to `Build steps`, there are `Trigger`, `Environment`, and a catch all `Other` section that breakdown each of their uses accross the audited pipelines.
+
+### Example
+
+
+
+### Manual Tasks
+
+Under the Manual task section you will find a list of all the manual tasks that the pipelines would surface in a migration. Manual tasks are Valet's way of indicating tasks a user needs to do in order for a pipeline to be functional, such as adding `secrets`, or setting up a `self-hosted` runner. We will see how these manual tasks appear on a pull request when we do a migration in a lab later on.
+
+### Example
+
+
+
+### Files
+
+At the end of the Audit Summary page you will find a list of all of the files that were written to disk. Generally, for any given pipeline, you’ll find 2 or 3 associated files. In these files are the actual converted GitHub Actions workflows.
+
+In addition, you’ll see a file that shows the raw JSON data that we pull from Jenkins as well as any associated Jenkinsfiles for a given job. These files are really useful for engineering teams to help debug any issues and to understand what may have gone on in a transformation.
+
+#### Example
+
+
+
+### Next Lab
+
+[Dry run the migration of a Jenkins pipeline to GitHub Actions](valet-dry-run-lab.md)
diff --git a/jenkins/valet-configure-lab.md b/jenkins/valet-configure-lab.md
new file mode 100644
index 0000000..b9456c7
--- /dev/null
+++ b/jenkins/valet-configure-lab.md
@@ -0,0 +1,78 @@
+# Configure Valet to work with Jenkins
+
+In this lab, you will use the Valet `configure` command to set up the required information to communicate with the Jenkins and GitHub instances. The `configure` command can be used for all of the supported providers, in this lab we will be focusing on Jenkins.
+
+- [Prerequisites](#prerequisites)
+- [Configuring Valet](#configuring-valet)
+- [Verify Valet Works](#verify-valet-works)
+- [Next Lab](#next-lab)
+
+## Prerequisites
+
+1. Followed [steps](../Jenkins#readme) to set up your codespace environment and start your Jenkins instanace.
+
+## Configuring Valet
+
+1. Login to the Jenkins instance to generate a personal access token:
+ 1. Click the `PORTS` tab in the codespace terminal window.
+ 2. In the `PORTS` tab find the row for port 8080.
+ 3. Hover over the address under the `Local Address` column, and click the globe to "open in browser".
+ 4. Login to the Jenkins server and generate a Jenkins API token.
+ - Click the `admin` button located within the top right menu.
+ - Click on the `configure` gear located on the left hand panel.
+ - Under the `API token` section, click `Add new Token`.
+ - Add a defaualt name to your token, then click `Generate`.
+ - Copy the token that was generated and record token for a later step.
+
+
+
+2. Create a GitHub personal access token (PAT).
+ - Navigate to your GitHub `Settings` - click your profile photo and then click `Settings`.
+ - Go to `Developer Settings`
+ - Go to `Personal Access Tokens` -> `Legacy tokens (if present)`
+ - Click `Generate new token` -> `Legacy tokens (if present)`. If required, provide your password.
+ - Select at least these scopes: `read packages` and `workflow`. Optionally, provide a text in the **Note** field and change the expiration.
+ - Click `Generate token`
+ - Copy the token somewhere safe and temporary.
+3. Run Valet configure commands
+ - In the codespace terminal window click back to the `TERMINAL` tab.
+ - Within the terminal, ensure you are in the root dirrectory.
+ - Run `gh valet configure`.
+ - Use the down arrow key to highlight `Jenkins`, press the spacebar to select, then hit enter to accept.
+ - At the prompt enter your GitHub Username and press enter.
+ - At the GitHub Container Registry prompt enter the GitHub PAT generated in step 3 and press enter
+ - At the GitHub PAT prompt enter the GitHub PAT generated in step 3 and press enter.
+ - At the GitHub url prompt enter the GitHub instance url or hit enter to accept the default, if you are using github.com then the default is the right choice.
+ - At the Jenkins token prompt enter the Jenkins access token from step 2 and press enter.
+ - At the Jenkins url prompt enter `http://localhost:8080/` and press enter.
+ - At the Personal access token to fetch source code in GitHub prompt, if any of your Jenkins pipelines have source code in a GitHub repository enter the GitHub PAT that would have acess to these files.
+4. If all went well you should see a similar output in your terminal:
+
+
+## Verify Valet Works
+
+To verify Valet works we are going to run a `update` and `dry-run` command. We will go further into details about the `dry-run` command in a later lab, but for now we want to get the latest version of Valet and confirm that Valet can perform a dry-run with no errors.
+
+1. In the codespace terminal update Valet by running `gh valet update`
+2. In the terminal you should see a confirmation that it logged into the GitHub Container Registry and pulled the latest version.
+
+ ```
+ Login Succeeded
+ latest: Pulling from valet-customers/valet-cli
+ Digest: sha256:a7d00dee8a37e25da59daeed44b1543f476b00fa2c41c47f48deeaf34a215bbb
+ Status: Image is up to date for ghcr.io/valet-customers/valet-cli:latest
+ ghcr.io/valet-customers/valet-cli:latest
+ ```
+
+ 3. Next, lets run the dry-run command in the codespaces terminal, to verify we can talk to Jenkins
+
+ ```
+ gh valet dry-run jenkins --source-url https://localhost:8080/job/test_pipeline/ --output-dir ./tmp/dry-run-lab
+ ```
+
+ 4. In the terminal you should see the command was successful, if not it is a good time to practice the configure command again and make sure the access tokens values are correct and were generated with the correct permissions.
+
+
+### Next Lab
+
+TODO
diff --git a/readme.md b/readme.md
index 690dc5c..cefd92e 100644
--- a/readme.md
+++ b/readme.md
@@ -1,13 +1,16 @@
-# Welcome to Valet labs!
+# Welcome to Valet labs
+
These Valet labs let you test-drive Valet by bootstrapping the environment of your choosing. To get started:
+
1. Get access to Valet and create your own GitHub Repository. See [Prerequisites](#prerequisites) below.
-2. Bootstrap your environment. The default page of the lab of your choosing will detail how to configure and run the action to bootstrap the environment. Currently these labs support [Azure DevOps](azure_devops).
+2. Bootstrap your environment. The default page of the lab of your choosing will detail how to configure and run the action to bootstrap the environment. Currently these labs support [Azure DevOps](azure_devops) and [Jenkins](jenkins).
3. Run Valet via Codespaces. The codespace has docker running and will update to the latest Valet environment.
4. Proceed with running the labs!
# Prerequisites
+
1. Valet is currently private and customers must be onboarded prior to using it. Please reach out to [GitHub Sales](https://github.com/enterprise/contact) to inquire about being granted access.
-2. Create your own GitHub Repository in your own GitHub Organization or under your user with Codespaces enabled using this Repository as a template. To do so:
+2. Create your own GitHub Repository in your own GitHub Organization or under your user with Codespaces enabled using this Repository as a template. To do so:
- Navigate to the top of this Repository click `Use this template`
- Select the owner of the new Reposiotry. It could be your personal username or an Organization you belong to.
- Name the Repository
@@ -17,6 +20,6 @@ These Valet labs let you test-drive Valet by bootstrapping the environment of yo
## Environments to bootstrap
+
- [Azure DevOps](azure_devops)
- [Jenkins](jenkins)
-
